Rotary Gear SS-316 Pump-FXGP Series Flow Line Make Rotary gear Stainless Steel pump Model “FXGP” (SS Rotary Gear Pump, Stainless Steel Gear Pump) which is self priming, foot mounting type positive displacement rotary gear Stainless Steel pump.The Model “FXGP” having all Stainless Steel (SS-316) in three piece Design construction with IC Casting . Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. FXGP Series have SS-316 Gear and shaft that are nitrated MOC to give long life and trouble free performance. The shaft is supported on self lubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant and viton oil seal. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service. Operating Data : Discharge Pressure : 10 Kg/cm2 Capacity : 500 LPM ( 30 M3/Hour) Sealing : Gland / Mechanical Seal Material Of Construction : SS-316 / SS-316 L Connection Type: Threaded (BSP/NPT) Speed : 1450 / 960 / 720 RPM Max. Viscosity : 10000 SSU Size : ¼” to 3” Feature : Handling Negative Suction Single Helical Gear Design Three Piece Design for Easily Cleanble and Maintanable Smooth Running and Dry Bearing Condition Corrosion Preventing MOC Application : Food product like Ghee, Butter, Pulp, Vegetable sauce. Syrup,Cream,Paste,Gel,Dyes and Fatty Acids,Mango Pulp,Dyeing and Printing ,Ink,Resins,Additives,Gums,Acid Oil,Vegetable Oil,Thermic Fluid etcc

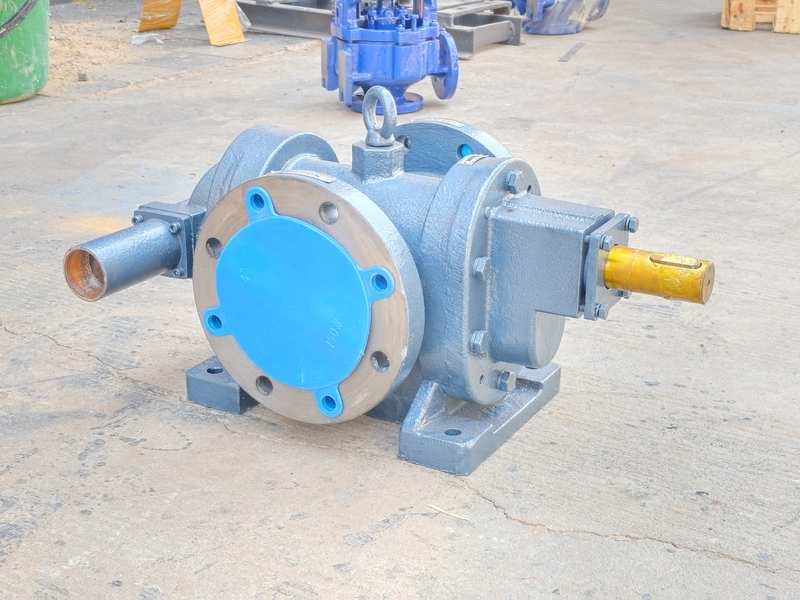

Rotary Gear Flange Mounted Pump-FGP-RB Series Flow line Pumps and Engineers Manufacturing and Exporter Rotary Gear Flange Mounted Pump its specifically FGP-RB Series, is a type of positive displacement Double Helical Gear pump that uses rotating gears to transfer fluids. This type of pump is often chosen for its ability to handle a variety of liquids, including those with high viscosities or particulate content. Here’s an overview of its key characteristics. FGP-RB Series pump relies on two meshing gears (usually one driving and one idler) that create suction to draw fluid in, and pressure to discharge it through the outlet. This ensures a smooth and continuous flow. Pump Model Capacity @ 1450 RPM Power REQ. Weight of Bare Pump No Load Unit Size Viscous h.p. HP/KG ASA-150 # LPM US M3/hr 200 CST 500 CST 750 CST Pres.   GPM   FGP-RB-50 S 13 3.3 0.75 0.075 0.11 0.19 0.034 8.5 1/2" x 1/2" M 16.6 4.4 1 0.1 0.15 0.25 0.045 FGPRB-100 S 30 7.92 1.8 0.16 0.28 0.4 0.088 9 1" x 1" M 37.5 9.9 2.25 0.2 0.35 0.5 0.11 FGP-RB-150 S 60 15.8 3.6 0.32 0.52 0.6 0.176 12 1 1/2" x 1 1/2" M 75 19.8 4.5 0.4 0.65 0.75 0.22 FGP-RB-200 S 100 26.4 6 0.4 0.68 0.8 0.272 22 2" x 2" M 125 33 7.5 0.5 0.85 1 0.34 FGP-RB-250 S 150 40 9 0.71 0.94 1.13 0.405 28 2 1/2" x 2 1/2" M 200 52.9 12 0.95 1.25 1.5 0.54 FGP-RB-300 S 250 66 15 0.94 1.28 1.5 0.615 40 3" x 3" M 333 88 20 1.25 1.7 2 0.82 FGP-RB-400 S 415 111 25 2.92 4.17 5 1.1 68 4" x 4" M 500 132.9 30 3.5 5 6 1.32 FGP-RB-500 S 600 158 36 4 6 7.2 1.568 110 5" x 5" M 750 197.5 45 5 7.5 9 1.96 FGP-RB-600 S 1000 2630 60 5.63 7.5 9 2.7 170 6" x 6" M 1335 351 80 7.5 10 12 3.6 Selection Chart : Operating Data : Discharge Pressure : 11 Kg/cm2 Capacity : 1500 LPM Sealing : Gland / Mechanical Seal MOC : Cast Iron/Cast Steel/SS-304/SS-316/SS-316L Connection Type : Flange ASA 150# Gear Type : Helical / Spur Part Material For Standard Material Of Available Pump Body IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Front Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Back Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Gland Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Rotar Gear EN-19 SS-304/SS-316/SS-316L Stator Gear IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Shaft EN-8 SS-304/SS-316/SS-316L Wear Plate Bronze SS-316/SS-316 L Bush Teflon Teflon Coated DU SS Shaft Seal Gland/Mechanical Seal Gland/Mechanical Seal Application: For liquid having low Viscosity, Poor lubricating values or Containing dirts or impurities such as Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Sugar solution, Turpentine, Varnish, Wood Pulp, Molasses, Grease Transfer,Chunna Paste Transfer ETC

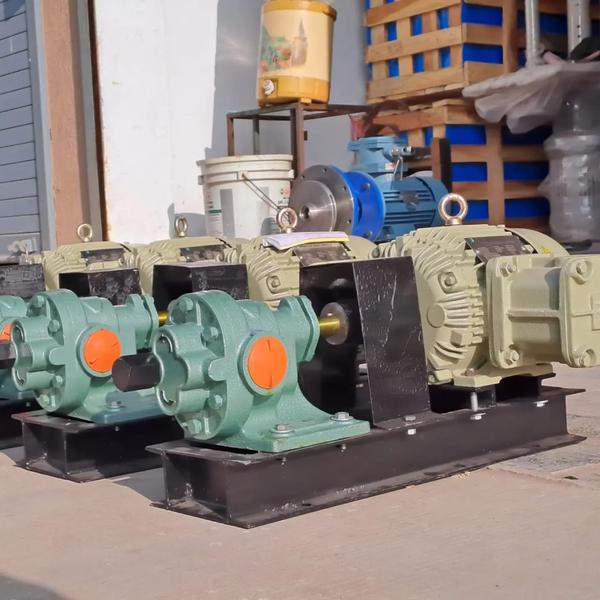

Rotary Gear Pump -FGP Series Rotary Gear Pump FGP Series are Helical gear pumps are useful for pumping and transferring all viscous liquids, oils and petroleum products. FGP Series Rotary Gear pump are prepared By Graded Cast Iron , Modified Profile Single helical Gears , Hardened & Ground Shafts . Self-Lubricated Sintered Bronze Bush fitted Assembly.  Material of Construction and Part List Operating Data : Discharge Pressure : 10 Kg/cm2 Capacity : 550 LPM Sealing Option : Oil Seal/Gland/Mechanical Seal Gear Design : Single Helical/Spur Connection Type: Threaded (BSP) MOC Availability : Cast Iron/Cast Steel Size : ½” to 3” ( 12 MM TO 80 MM) Application : Chemical, Petrochemical food , Oil , Steel Refinery , Paint and ink ,Resins and adhesives, Dairy , Sugar , acid, soap, lye, black liquor, kaolin, lime, latex ,Thick sludge , Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc Part Material For Standard Material For H.T. Body IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade Back Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade Gland Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade R.H. & L.H. Gear EN-8 EN-24 [H. Nitrated] Rotor/Stator Shaft EN-19 EN-19 Bearing[Bushes] Non Ferrous Sintered Bronze Non Ferrous Sintered Bronze Sealing Neoprene oil Seal / Mechanical seal "GFO" Pack Teflon / Mechanical Seal R.V. Cap Aluminium Aluminium Key for coupling EN-8 EN-8
