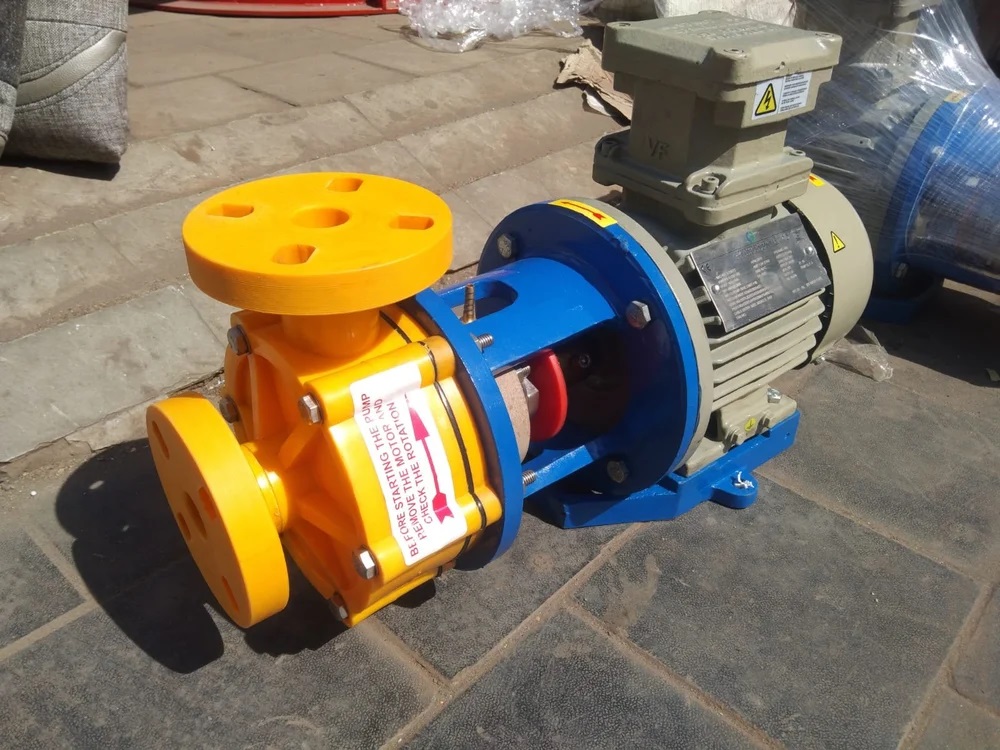

Centrifugal Couple Drive Non-Metallic Polypropylene Pump – FPP Series Non-metallic pumps are is Mostly Used in Application of industries handling corrosive and Highly acidic Fluids. FPP Series Non-Metallic pumps are highly resistant to corrosion, making them well-suited for use in chemical processing, water/wastewater treatment, electroplating, ETP Plants and other applications where metallic pumps would quickly Damages body and Its parts. FPP Series is Non-metallic Pumps has expanded rapidly in recent years, driven by Few Applications. This Non-Metallic Pump materials include polypropylene (PP), polyvinylidene fluoride (PVDF), polytetrafluoroethylene (PTFE). These pumps Materials where corrosion and wear resistance, and their relatively low prices make them an attractive alternative to traditional metal designs.. This flexibility allows non-metallic pumps to be tailored to the unique requirements of diverse industrial applications. Non-Metallic Pumps temperature resistance capacity: Polypropylene : 0- 60 Degree PVDF (Polyvinylidene Fluoride ): 0-120 Degree Operating Data : Head Range : 55 MT. Max. Pressure : 5.5 Bar Capacity : 60 m3/Hour Max. Pipe Line Size : 25 mm to 75 mm Sealing : PTFE Gland / Mechanical Seal Pump MOC : PP/PVDF Impeller Type : Semi Open Connection Type: Flange Ended Speed Range : 2900 / 1450 RPM Features : 1. Suitable for Highly Corrosive Applications 2. Dual Direction Mechanical Seal Arrangements 3. Low Costly Spare Parts 4. Easy To Installation and Low Noise 5. Non-Sparkable in Operating Systems 6. Semi Open Impeller For Anti-Choking Liquids on Impeller Vanes FPP Series Pump Parts: 1. Volute Casing : Top Centre Mounted Design Delivery Casing from Injection Moulded PP/PVDF. 2.Impeller : Semi Open Type Design Non-clogging large Countered Flow Passage for Max Handling liquids flow. 3.Back Plate : Heavy Moulded Design PP/PVDF Back Plate With Sealing Arrangements. 4.Adaptor : Facilitates maintenance without disturbing Bearing Block and Shaft. 5.Bearing Housing : Heavy Cast Iron construction, precision machined for no shaft deflection of more than 0.05 mm contains large oil reservoir. 6. Ball Bearings: Inboard bearing is pressed on shaft and free to float axially in frame - carries radial load only. Outboard double row ball bearing is shouldered and locked on shaft with lock-nut and washer, and in bearing housing to carry radial and any unbalanced thrust load. All bearing fits are precision bored. 7.Shaft : Designed for maximum 0.05 mm deflection at mechanical seal. Available in EN-8/SS-410/SS-304/316/316-L. 8. Ceramic Sleeve : Shaft Sleeve of different material depending on the compatibility of the liquid to be handled. Mechanical Seal / Gland Packing : Pumps are fitted with either mechanical seal or gland packing depending on the service conditions. Gland packing pumps come with pure PTFE or PTFE Impregnated Blue Asbestos against specific customer requirements. Application : E.T.P Plant/ Dyes and Intermediates /Filter Press Feeding/Descaling / Scrubber /Eva-Operated/Acid Transfer Etc.
