Rotary Gear Flange Mounted Pump-FGP-RB Series Flow line Pumps and Engineers Manufacturing and Exporter Rotary Gear Flange Mounted Pump its specifically FGP-RB Series, is a type of positive displacement Double Helical Gear pump that uses rotating gears to transfer fluids. This type of pump is often chosen for its ability to handle a variety of liquids, including those with high viscosities or particulate content. Here’s an overview of its key characteristics. FGP-RB Series pump relies on two meshing gears (usually one driving and one idler) that create suction to draw fluid in, and pressure to discharge it through the outlet. This ensures a smooth and continuous flow. Pump Model Capacity @ 1450 RPM Power REQ. Weight of Bare Pump No Load Unit Size Viscous h.p. HP/KG ASA-150 # LPM US M3/hr 200 CST 500 CST 750 CST Pres.   GPM   FGP-RB-50 S 13 3.3 0.75 0.075 0.11 0.19 0.034 8.5 1/2" x 1/2" M 16.6 4.4 1 0.1 0.15 0.25 0.045 FGPRB-100 S 30 7.92 1.8 0.16 0.28 0.4 0.088 9 1" x 1" M 37.5 9.9 2.25 0.2 0.35 0.5 0.11 FGP-RB-150 S 60 15.8 3.6 0.32 0.52 0.6 0.176 12 1 1/2" x 1 1/2" M 75 19.8 4.5 0.4 0.65 0.75 0.22 FGP-RB-200 S 100 26.4 6 0.4 0.68 0.8 0.272 22 2" x 2" M 125 33 7.5 0.5 0.85 1 0.34 FGP-RB-250 S 150 40 9 0.71 0.94 1.13 0.405 28 2 1/2" x 2 1/2" M 200 52.9 12 0.95 1.25 1.5 0.54 FGP-RB-300 S 250 66 15 0.94 1.28 1.5 0.615 40 3" x 3" M 333 88 20 1.25 1.7 2 0.82 FGP-RB-400 S 415 111 25 2.92 4.17 5 1.1 68 4" x 4" M 500 132.9 30 3.5 5 6 1.32 FGP-RB-500 S 600 158 36 4 6 7.2 1.568 110 5" x 5" M 750 197.5 45 5 7.5 9 1.96 FGP-RB-600 S 1000 2630 60 5.63 7.5 9 2.7 170 6" x 6" M 1335 351 80 7.5 10 12 3.6 Selection Chart : Operating Data : Discharge Pressure : 11 Kg/cm2 Capacity : 1500 LPM Sealing : Gland / Mechanical Seal MOC : Cast Iron/Cast Steel/SS-304/SS-316/SS-316L Connection Type : Flange ASA 150# Gear Type : Helical / Spur Part Material For Standard Material Of Available Pump Body IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Front Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Back Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Gland Cover IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Rotar Gear EN-19 SS-304/SS-316/SS-316L Stator Gear IS.210 FG 220 C.I. Grade SS-304/SS-316/SS-316L Shaft EN-8 SS-304/SS-316/SS-316L Wear Plate Bronze SS-316/SS-316 L Bush Teflon Teflon Coated DU SS Shaft Seal Gland/Mechanical Seal Gland/Mechanical Seal Application: For liquid having low Viscosity, Poor lubricating values or Containing dirts or impurities such as Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Sugar solution, Turpentine, Varnish, Wood Pulp, Molasses, Grease Transfer,Chunna Paste Transfer ETC

Rotary Gear Pump -FGP Series Rotary Gear Pump FGP Series are Helical gear pumps are useful for pumping and transferring all viscous liquids, oils and petroleum products. FGP Series Rotary Gear pump are prepared By Graded Cast Iron , Modified Profile Single helical Gears , Hardened & Ground Shafts . Self-Lubricated Sintered Bronze Bush fitted Assembly.  Material of Construction and Part List Operating Data : Discharge Pressure : 10 Kg/cm2 Capacity : 550 LPM Sealing Option : Oil Seal/Gland/Mechanical Seal Gear Design : Single Helical/Spur Connection Type: Threaded (BSP) MOC Availability : Cast Iron/Cast Steel Size : ½” to 3” ( 12 MM TO 80 MM) Application : Chemical, Petrochemical food , Oil , Steel Refinery , Paint and ink ,Resins and adhesives, Dairy , Sugar , acid, soap, lye, black liquor, kaolin, lime, latex ,Thick sludge , Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc Part Material For Standard Material For H.T. Body IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade Back Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade Gland Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade R.H. & L.H. Gear EN-8 EN-24 [H. Nitrated] Rotor/Stator Shaft EN-19 EN-19 Bearing[Bushes] Non Ferrous Sintered Bronze Non Ferrous Sintered Bronze Sealing Neoprene oil Seal / Mechanical seal "GFO" Pack Teflon / Mechanical Seal R.V. Cap Aluminium Aluminium Key for coupling EN-8 EN-8

Centrifugal Chemical Process Pump -FLP-OP Series Flow line Pumps FLP-OP Series Chemical process pump line is specifically designed to provide Highly Superior performance for low flow services of the Chemical Process Industrial Variable Applications. FLP-OP Series Chemical pumps are in various Materials of Construction with Semi Open Impellers as the construction of the pump for all Clear liquid or Slurry Type Liquid Handling in the Chemical Industries. FLP-OP Series can offer these pumps with various kinds of wear rings depending on the process liquids to serve its customers in a much better and efficient way providing them a pump which is free in maintenance Key Points about semi-open impellers: • Design: Has a back wall shroud that encloses the impeller vanes on one side, providing structural support while remaining open on the other side, allowing for fluid flow and solid passage. • Advantages: • Solid handling capability: Semi Open Impeller Can handle larger particles than a closed impeller without clogging as easily due to the open design. • Moderate efficiency: Offers better efficiency than a fully open impeller while still allowing for solid passage. • Versatility: Suitable for a wider range of fluid conditions with moderate solids content compared to a fully closed impeller. • Maintenance : Can be cleaned and inspected more easily than a fully closed impeller due to the partially open design. Operating Data: Head Range : 90 MT. Max. Pressure : 9 Bar Capacity : 250 m3/Hour Max. Pipe Line Size : 25 mm to 125 mm Sealing : PTFE Gland / Mechanical Seal Pump MOC : WCB/SS-304/SS-316/SS-316 L/Alloy20/Duplex Steel Impeller Type : Semi Open Connection Type: Flange Ended Speed Range : 2900 / 1450 RPM Features : 1. Back Pull Out Centrifugal Design 2. semi-open impellers with back vanes with anti-chocking Slurry. 3. Stuffing box options that allow for a variety of mechanical seals. 4. Design As per ANSI pump dimensions. 5. With smooth flow passages and larger eye area it helps in easy flow of slurries and solids content. Application: Distilleries (Fermentation and Evaporation Section) /Mineral Recovery Plants/ Speciality Chemicals / Pulp and Paper industry for the transfer of Black and Green Liquor. / Starch Industry / Dyes and Pigments /Chloro Alkali Plants / Pesticides and Insecticides /Fertilizers.

Closed Impeller Centrifugal Pump The Heart of Efficient Fluid Handling When it comes to moving liquids in various industrial and commercial applications, centrifugal pumps are the go-to solution due to their simplicity, reliability, and efficiency. Among the different types of centrifugal pumps, the closed impeller centrifugal pump stands out for its ability to handle a variety of fluids, its durability, and its operational efficiency. Whether you’re dealing with clean water, chemicals, or slurry, closed impeller centrifugal pumps are crucial in ensuring smooth fluid flow. In this blog, we’ll dive into what makes a closed impeller centrifugal pump unique, its key features, and why it’s a preferred choice for many industries.

UHMWPE Chemical Pumps The Ultimate Solution for Tough Chemical Handling In industrial processes that require the safe and efficient transport of aggressive or abrasive chemicals, using the right pump is crucial. Traditional pumps may not withstand the demands of such environments, leading to corrosion, erosion, and costly downtime. This is where UHMWPE (Ultra High Molecular Weight Polyethylene) chemical pumps come into play. Known for their exceptional durability, chemical resistance, and wear protection, UHMWPE chemical pumps are ideal for handling some of the toughest chemicals in various industries.

PVDF Chemical Process Pump for Flowline Pump The Ultimate Solution for Handling Harsh Chemicals In industrial processes where the safe and efficient transfer of corrosive chemicals is essential, having the right pump can make all the difference. Traditional pumps may struggle to handle the demands of aggressive substances, leading to corrosion, leaks, and frequent maintenance. This is where PVDF (Polyvinylidene Fluoride) chemical process pumps shine. Known for their unparalleled chemical resistance and durability, PVDF pumps are the perfect fit for demanding flowline systems that transport harsh chemicals, ensuring seamless operations in a variety of industries.

Polypropylene Chemical Pump for Flowline Pump The Ideal Solution for Handling Corrosive Fluids In industrial settings, pumping systems are integral to a wide range of processes, especially when it comes to transferring corrosive or aggressive chemicals. Traditional metal pumps often fail to withstand the wear and tear caused by these harsh substances. This is where polypropylene chemical pumps come into play. With their durability, reliability, and resistance to corrosion, polypropylene pumps have become the go-to choice for applications that involve transporting corrosive liquids in flowline pumping systems.

Air-cooled Thermic Fluid Hot Oil Pumps is of horizontal, single-stage, single-suction volute type and has a closed impeller. Two robust ball bearings support the shaft to provide extra stability, giving the pump a hear-resistant Egleburgman Make mechanical seal. The suction flange is on the front and in the axial position, while the discharge flange is at the top in the radial position. FTP-AC Series of centrifugal pumps are specifically designed to handle thermal oils up to 350 Deg.C without the need of expensive mechanical seal and auxiliary cooling arrangements.

The Pumps are primarily designed to handle water and are suitable for handling water in water supply systems for domestic and industrial use. Single Stage Pumping units of compact design with back pull out feature with Suction & Discharge Flange arranged in-line opposite one another for direct installation in the pipeline. Motor and Pump are close coupled by rigid coupling. The complete rotating portion can be removed without disconnecting the Pump casing from the connecting pipe line. Design Details Shaft Sealing: The Shaft is sealed by means of a Mechanical Seal. Wearing Ring: Every Volute Casing is fitted with a Replaceable wearing ring. Casing Gasket: The Volute casing is sealed by means of a flat gasket. Motor Option Standard Pumps are fitted with motor adaptor suitable for mounting Vertical Flange Mounting V-1 frame Motor, to suite particular specification where protection class & enclosure are required. Special suitable adaptor can be provided.

Air Operated Double Diaphragm Pump-AODD Series Air-operated double diaphragm pumps (AODD pumps) are designed for fluid transfer in a variety of Industrial applications. AODD diaphragm pumps reliably convey a wide range of fluids, viscous media, corrosive fluids and solids. AODD Series offers diaphragm pumps in different materials (metallic, non-metallic) and drive principles (electric, pneumatic) to meet the needs of Customer application. AODD pumps are not only the most cost effective, reliable and energy efficient solution, but our advanced air distribution system dramatically increases pump productivity by reducing air consumption and maintenance of most energy. The ideal solution for increasing your productivity, reducing energy consumption, reducing air consumption and simplifying maintenance. Flow line Pumps of the leading manufacturers of Pneumatic diaphragm pumps, we offer a full line of AODD pumps in a variety of sizes and flow rates to meet the versatility and flexibility you need to make pumping simple. Pump body materials Polypropylene(PP) Polyvinylidene Fluoride(PVDF) Aluminum Stainless Steel-316 Diaphragm materials • Teflon(PTFE) • Sentropene • Fluorine Rubber • Polyurethane • Buna-N Rubber Operating Data: Air Pressure : 8.6Kg/cm2 Head : Up to 45 Mtr Capacity : 850 LPM Drive : Air Compressor /Electrical Motor Connection : Threaded/Flange/TC Max Handling temp : 100 Degree MOC : PP/PVDF/Aluminium/SS-316 Features : AODD diaphragm pumps offer many unique advantages in a variety of applications, including: • Self-priming • Shear sensitive • High suction range • Variable flow and pressure • Viscous and non-viscous product transfer • Easy to operate and maintain • Corrosion resistant • No heat generation Application: Transfer peanut butter, pickles, mashed potatoes, small red sausages, jam, applesauce, chocolate, etc. Transfer Pumping paint, gum, pigment , Adhesives and glues, all kinds of available pump suction, Various abrasives, corrosives, petroleum and mud, cleaning oil scale and general containers.

Centrifugal Chemical Process Pump -FLP-OP Series Flow line Pumps FLP-OP Series Chemical process pump line is specifically designed to provide Highly Superior performance for low flow services of the Chemical Process Industrial Variable Applications. FLP-OP Series Chemical pumps are in various Materials of Construction with Semi Open Impellers as the construction of the pump for all Clear liquid or Slurry Type Liquid Handling in the Chemical Industries. FLP-OP Series can offer these pumps with various kinds of wear rings depending on the process liquids to serve its customers in a much better and efficient way providing them a pump which is free in maintenance Key Points about semi-open impellers: • Design: Has a back wall shroud that encloses the impeller vanes on one side, providing structural support while remaining open on the other side, allowing for fluid flow and solid passage. • Advantages: • Solid handling capability: Semi Open Impeller Can handle larger particles than a closed impeller without clogging as easily due to the open design. • Moderate efficiency: Offers better efficiency than a fully open impeller while still allowing for solid passage. • Versatility: Suitable for a wider range of fluid conditions with moderate solids content compared to a fully closed impeller. • Maintenance : Can be cleaned and inspected more easily than a fully closed impeller due to the partially open design. Operating Data: Head Range : 90 MT. Max. Pressure : 9 Bar Capacity : 250 m3/Hour Max. Pipe Line Size : 25 mm to 125 mm Sealing : PTFE Gland / Mechanical Seal Pump MOC : WCB/SS-304/SS-316/SS-316 L/Alloy20/Duplex Steel Impeller Type : Semi Open Connection Type: Flange Ended Speed Range : 2900 / 1450 RPM Features : 1. Back Pull Out Centrifugal Design 2. semi-open impellers with back vanes with anti-chocking Slurry. 3. Stuffing box options that allow for a variety of mechanical seals. 4. Design As per ANSI pump dimensions. 5. With smooth flow passages and larger eye area it helps in easy flow of slurries and solids content. Application: Distilleries (Fermentation and Evaporation Section) /Mineral Recovery Plants/ Speciality Chemicals / Pulp and Paper industry for the transfer of Black and Green Liquor. / Starch Industry / Dyes and Pigments /Chloro Alkali Plants / Pesticides and Insecticides /Fertilizers.

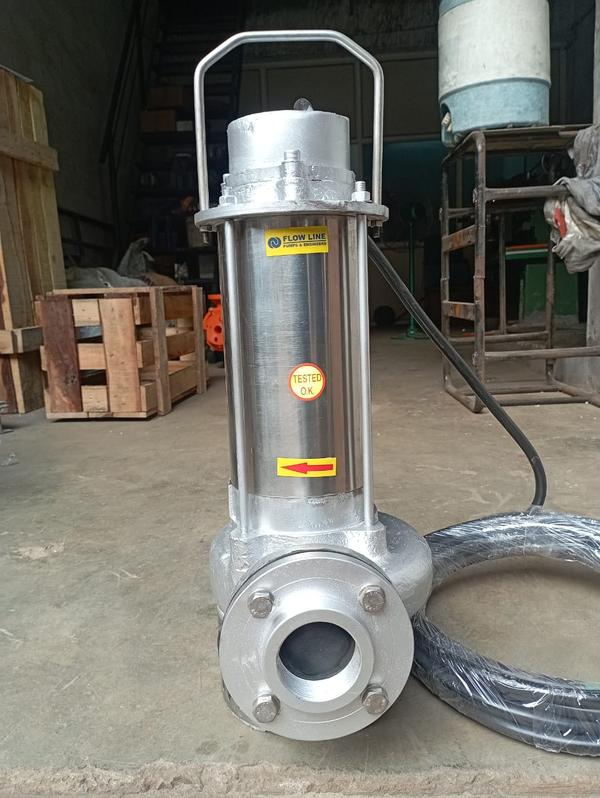

Submersible Sewage Mud Pump for Flowline Pump: An Essential Solution for Efficient Wastewater Management In the world of industrial and municipal wastewater management, one of the most critical components is a reliable and efficient sewage pump. Among various types of sewage pumps, the submersible sewage mud pump stands out as an ideal solution for flowline pumping systems. This blog explores the importance, functionality, and benefits of submersible sewage mud pumps, particularly for flowline applications.
