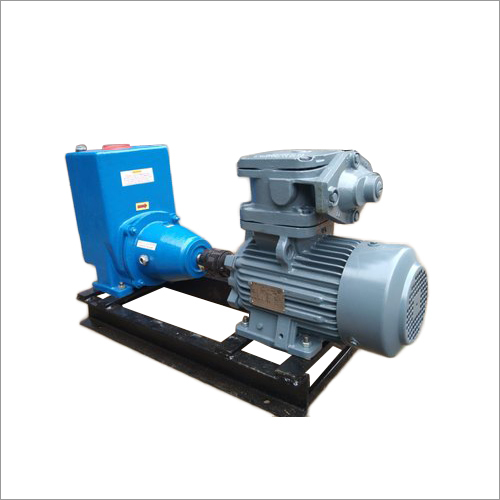

Cast Iron Self Priming Monoblock Pump
Product Details:
- Product Type Cast Iron Self Priming Monoblock Pump
- Usage Industrial
- Color Blue
- Material Iron
- Power Electric Watt (w)
- Pressure Medium Pressure PSI
- Application Submersible
15000 INR/Piece
X
Price And Quantity
- 1 , , Piece
- 15000 INR/Piece
Product Specifications
- Submersible
- Blue
- Medium Pressure PSI
- Electric Watt (w)
- Iron
- Industrial
- Cast Iron Self Priming Monoblock Pump
Product Description
Cast Iron Self Priming Monoblock Pump that we present is appreciated by customers for its sturdy construction, prolonged functional life, low maintenance, high efficiency and least power consumption. It is developed using the excellent quality material and sophisticated technology in adherence with the set norms of industry. Customers can easily come to us and avail this range of Cast Iron Self Priming Monoblock Pump from us at cost-effective selling price ranges.
Technical Specification
| Power | >10 HP |
| Frequency | 50 HZ |
| Voltage | 415 V |
| Impeller Type | Semi Open |
| Operating Temperature | 100 Degree |
| Country of Origin | Made in India |
| Maximum Ambient Temperature | 10 Degree |
| Maximum Liquid Temperature | 150 Degree Max |
| Maximum Suction Lift | 10 mtr With Foot Valve |
| Flow Range | 75 m3/Hour |
| Nominimumal Suction & Delivery Sizes | 80 x 80 mm |
| Type Of Duty | Continues |
| Degree Oof Rotation | Clock wise |
| Class Of Insulation | F Class |
| Degree Of Protection | IP 55 |
| Speed | 2900 RPM |
| Pump Size | 7.5 HP Max |
| Model Name/Number | FMP Series |
| Maximum Head | 35 mtr |
| Max Flow Rate | 75 m3/Hour |
| Head | 35 mtr Max |
| Cooling Method | With Out Cooling Self Priming |
| Usage/Application | Trasfer ETP STP Plants |
| Phase | Three Phase |
| Material | Iron |
| Color | Blue |
| Brand | FLP |
| Current | 415 V/50 HZ |
| Head Size | 2 1/2" X 2 1/2" |
| Capacity | 75 LPH |
| Motor Speed | 2900 RPM |
| Maximum Discharge Flow | 75 M3/Hour |
| Discharge Pressure | 3.5 kg/cm2 |
| Pump Type | Self Priming |
| Power Source | Electric |
